0.5-1t/h easy operation hot air sawdust dryer
I Material to dry:
Particular material as rice shell, saw dust, and ground wood chip, tree branch, wood bits, etc,.(Diameter is less than 3mm; Length, 5mm)

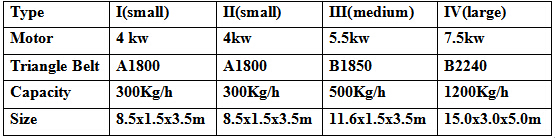

II: The main technical parameters of the drying machine
IV Operating rules for drying machine
1 After installation, start the blower, check the direction it runs and see if the suction at the material inlet is normal.
2. Tie up a bag whose both ends are open around the outlet of the dust catcher.
3.Feed the material to be dried to the hopper. Remove large grain in the material before drying, which will benefit drying speed.
4. Put fuel into the furnace and light it, start the blower. When the air temprature at the outlet of the blower get to 100℃, beging feeding and drying.
5.Large piece of the material at dregs-outlet must be removed, which is favourable to feeding.
V cautions
1. The machine must be grounded well.
2.The exhaust vent of the dust catcher must not be indoor, a flue pipe should be made to exhaust the gas outdoor, and the chimney must be at least 500mm higher than the roof.
3. The large grins of material should not put into the hopper.
4.When material does not get in easily, check the vane of the blower, remove the dust sticking to it.
Welcome to contact with us if youhttp://www.cngxdryer.com/Product/Drum_Dryer/Sawdust_Dryer.html have any questions about the small and ecnomical type hot air sawdust dryer
