Detail information about three cylinder dryer

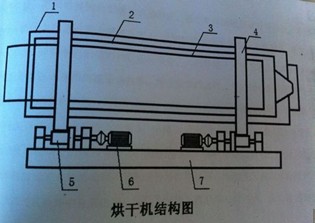

Components of three cylinder dryer:
1 Outer cylinder 2 Middle cylinder, 3 Inner cylinder 4 Roller ring 5 Carrier roller 6.Motor,Reducer 7 Supporting seat
Detail information about three cylinder dryer:
The raw material from the feeder machine go into the inner diameter and raw material raised up by lifting plate, the heat and raw material totally contact.then the raw material from the
inner cylinder go into the middle cylinder and from the middle cylinder enter into the outer cylinder.Finally the dried material come out at the discharge machine.
Three cylinder dryer equipment material and production Standards
| Name of parts | Materials | Specification performance standards | Production process standard | Coating standard |
| Cylinder | Q345R | GB/T713-2008 |
Welding standards GB/T985.1-2008 |
Rust removing GB/T6807-2001 Lacquering GB/T18178-2000 |
| Roller ring | ZG45 | GB/T713-2008 | ||
| Carrier roller | ZG45 | GB/T16253-1996 | ||
| Bearing box | HT200 | GB/T9439-1988 | ||
| Roller carrier shaft | 45# | GB/T699-1999 | ||
| Cushion block of roller ring | ZG45 | GB/T16253-1996 | ||
| Pedestal of Carrier roller | 40# | GB/T706-2008 | ||
| Transmission Pedestal | 40# | GB/T706-2008 | ||
| Coupler | ZG45 | GB/T16253-1996 | ||
| Feeding device | Q345R | GB/T713-2008 | ||
| Discharging device | Q345R | GB/T713-2008 | ||
| Motor |
Electromagnetic Speed regulating motor |
GB/T755-2000 | ||
| Bearings | Cylindrical self-aligning roller bearing | GB/T 24610.3-2009 |
If you are interested in our three cylinder dryer, we warmly welcome you come our factory to check ma
