New Design Manufacturing Sawdust Dryer
Email: jia@cncharcoalmachine.com
Mobile/WhatsApp: 008613937134928
Sawdust dryer component:
1) Furnace
2) Connection pipes between sawdust dryer and furnace
3) Feeder machine
4)Temperature detector
5) Sawdust dryer roller ring
6) Big gear(45# steel)
7) Transmission parts ( Motor, Reducer, Bearing,Small gear)
8) Carrier Roller of sawdust dryer
9) Discharge machine
10) Cyclone
11) Water dust collector

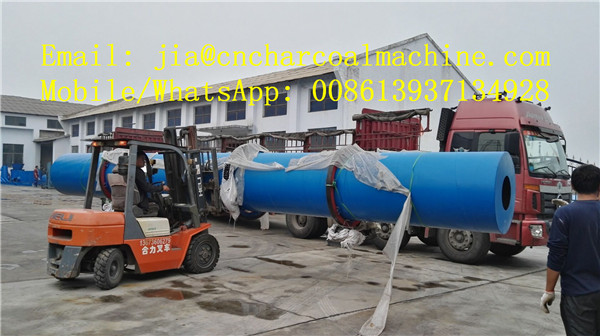

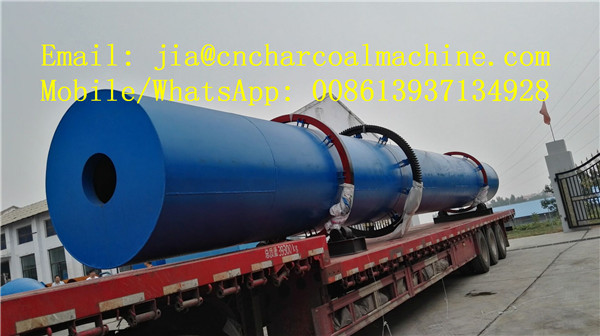

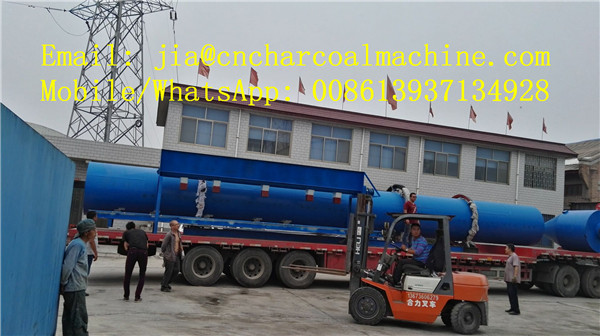

The sawdust dryer we have exported to abroad:
Technical parameters of wood sawdust dryer:
|
|
Diameter (mm) |
Drum length (m) |
Main reducer
|
Speed (r/min) |
Production capacity (t/h) |
Power (kw) |
Weigh(t) |
Volume(m3) |
|
|
Model |
Ratio
|
||||||||
|
Φ1.0X10 |
Φ1000 |
10 |
JZQ450-16-11 |
6.73 |
1-3.8 |
5.5 |
7.5 |
7.85 |
|
|
Φ1.2X12 |
Φ1200 |
12 |
ZL50-16-1 |
5.8 |
1.8-5.5 |
11 |
13.8 |
13.31 |
|
|
Φ1.5X12 |
Φ1500 |
12 |
JZQ500-111-2F |
16.46 |
4.8 |
4-9 |
15 |
22.3 |
21.2 |
|
Φ1.5X 15 |
Φ1500 |
15 |
ZQ50-1611-2 |
16.46 |
4.8 |
4-10 |
18.5 |
28.8 |
26.5 |
|
Φ1.8X14 |
Φ1800 |
14 |
JZQ650-111 |
18.84 |
3.2 |
6-12 |
30 |
39.8 |
48.22 |
|
Φ2.2X16 |
Φ2200 |
16 |
ZJQ750-111 |
31.5 |
3 |
10-23 |
37 |
51 |
60.1 |
|
Φ2.2X18 |
Φ2200 |
18 |
JZQ750-111 |
31.5 |
3 |
10-25 |
37 |
53.3 |
70.43 |
|
Φ2.4X20 |
Φ2400 |
20 |
ZL85-13-1 |
27.16 |
2.83 |
20-40 |
45 |
78.4 |
90.43 |
|
Φ2.8X24 |
Φ2800 |
24 |
ZL100-16-1 |
31.5 |
2.59 |
20-45 |
55 |
97 |
147.8 |
|
Φ3.0X20 |
Φ3000 |
20 |
ZL100-16-1 |
41.54 |
2.6 |
25-48 |
55 |
102 |
141.3 |
|
Φ3.2X25 |
Φ3200 |
25 |
ZLH115 |
41.54 |
2.1 |
30-55 |
110 |
148 |
201 |
