Mesh Belt Dryer ( Box Type Dryer) Installation Instruction
Mesh belt dryer machine introduction:
Mesh belt dryer dryer for drying food and general molding material , according to the different materials used for the heat source is not the same , box-type dryer heat source that can be used include coal, natural gas, gas , wood , electric wire.
Such as food drying, due to contaminated food products are not available , so the choice is very important heat source , generally requires the use of electric wire for drying.
Mesh belt dryer component,Usage and installation:

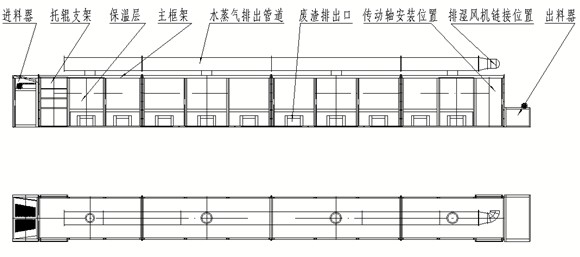

Mesh belt dryer include:feeder , roller frame, insulation, main frame , pipe , a feeder, passive roller portion , active roll section , mesh belt, drive chain and so on.
Feeder : Feeder main structure is a frame , fabric , and a driven shaft component , the installation position adjustment need only put away a good fit between the shaft , but also need to pay attention when using this point .
Roller frame : The main role is to place axes , and adjust shaft position , you only need to frequently observed , often observed to determine whether the axis shift .
Insulation: insulation layer main role is to make the temperature of the dryer does not drain to reduce heat consumption, improve fuel efficiency effect , the insulating layer inside the insulation cotton , to ensure the insulation effect . All removable insulation layer , box-type dryer can be done better running.
Main frame : main frame is made from 10 # channel steel , the main framework of making strict connection , you need to pay attention to the location and number of screw holes to connect whether the installation should pay attention to the level of correction and are concentric . Note that say that the main frame , both two . The first two is the presence of a shaft , is box-type drying machine main part .
According to box-type dryer purchased length will add a different number of sub-frame , box-type dryer to increase the length and effectiveness .
Pipeline : Mainly humidity pipes, and humidity and fan to connect pipes, pipe need to follow the assembly plans to connect.
Belt : Box chain mesh belt dryer use are non- GB , if there is damage do not arbitrarily configure and purchase, please identify the model and manufacturer or manufacturers to buy accessories.
Transmission chain about mesh belt dryer : as GB , according to the dryer of different sizes, models are not the same .
If you are intersted in our mesh belt dryer, we warmly welcome you come our factory check machine here at any time. We can pick you at the airport.
Please contact with us!
