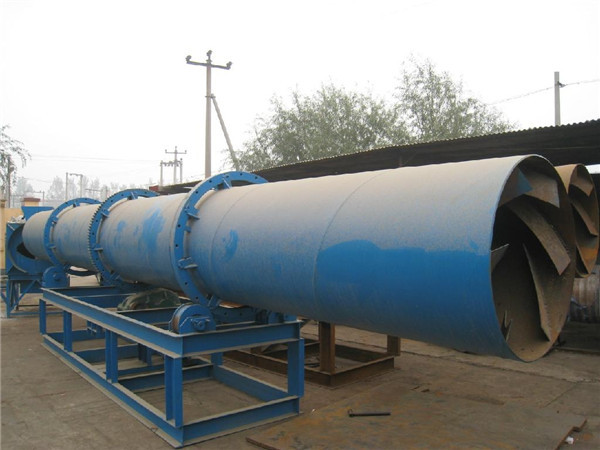

Hongrun Sawdust Drying Equipment Shipping List
Hongrun tobacco drying equipment have exported to India yesterday. Drying high moisture raw material, it's you better chooice. No matter what rotary dryer you need, please don't hesitate contact us.
| Name | Quantity | Remarks |
| Bucket Elevator | 1 | GX-1,including one set motor:2.2kw |
| Drye Cylinder | 1 | φ600x6000mm,including one set motor 22kw |
| Roller base | 2 | |
| Big gear and small gear | 1 | 3 pieces |
| Transmission device | 1 | reducer(ZQ650) |
| Discharge Device | 1 | φ1095x1200mm |
| Flexble-pipe connection | 4 | φ355 |
| Straight Connector | 4 | φ355x1260 |
| Cyclone connect Device | 1 | φ355x355 |
| Fan Connect Device | 1 | Square Opening: 256x199 / Round Mouth: φ355 |
| Draft Fan | 1 | 4c: anchor screw / fan valve |
| Temperature Device | 2 | |
| Cyclone | 1 | φ600, including one set motor |
| Store hot chamber | 1 | GX-11 φ1.3x2.2m |
| Conveyor body frame | 1 | B500,including one set motor 2.2kw |
| Block Roller | 2 | |
| Small Roller | 6 | Length:240mm |
| Carrier Roller | 1 | Lifting Lug: 2 pieces |
| Large and small pulley | 1 | Grease F |
| Large and small pulley | 1 | Grease Fitting: 6 pieces |
| Fan Triangle(A1800-2pieces) | 355Flange:12 pieces | Conveyor Triangle: B2800/2 pieces |
